Starting ITS2 PCRs 2/1/19
E1 E5 E12 E18 E24
Procedure
Samples E1 E5 E12 E18 E24 were used in this PCR (polimerase chain reaction) reaction
First A Master Mix of water, 2x mytaq mix, ITS2 Primer Reverse (concentration: 10 micromolar), ITS2 Primer Forward (concentration: 10 micromolar)
| Component | Volume for 6 reactions (plus 10% extra) |
|---|---|
| Water | 62.7 micoleters |
| 2x mytaq mix | 82.5 micoleters |
| ITS2 Primer Reverse (concentration: 10 micromolar) | 6.6 micoleters |
| ITS2 Primer Forward (concentration: 10 micromolar) | 6.6 micoleters |
24 micoleters of this master mix was added to 6 tubes
1 microleter of the DNA samples was added to the tubes and 1 microleter of water was added to another tube as a control
The samples were then placed in the thermocycler set to
| Step | Temperature | Duration | cycles |
|---|---|---|---|
| 1 | 92°C | 3:00 | 1 |
| 2 | 92°C | 0:30 | 35 |
| 3 | 52°C | 0:40 | 35 |
| 4 | 72°C | 0:30 | 35 |
| 5 | 72°C | 5:00 | 1 |
| 6 | 10°C | hold | - |
using these amplified DNA samples a Gel was created
to create the Gel the following steps were taken
2g agarose and 100ml 1X TAE buffer were mixed to make a 2% agarose 100ml gel mix the mix was microwaved and swirled until there were no flakes then 5 microliters Gelgreen was added
the mix was left to cool for 5 minutes then poured into the gel mold the gel was left to harden for 30 minutes
once hardened enough Used TAE buffer was poured into the gel box to cover the mold
5 microliter aliquots of DNA samples E1, E5, E12, E18, E24, and the control were made 1 microliter of 5x loading dye was added to each
First the HyperLadder 100bp was added to the first well of the mold then the DNA samples were each added to the wells in the following order
| ladder | E1 | E5 | E12 | E18 | E24 | control |
The voltage was set to 100V and run for 30 minutes

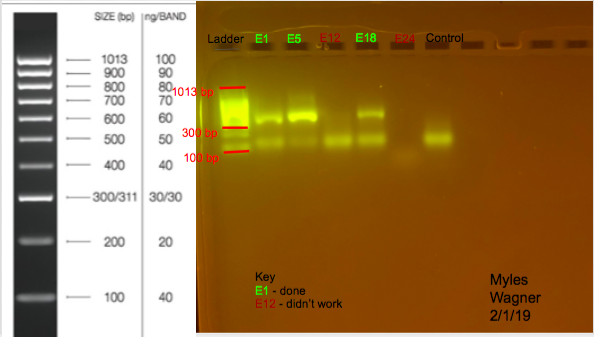

This is the resulting Gel
