E1 E2 E3 E4 E5 E6

Procedure

• Primer info

Samples E1 E2 E3 E4 E5 E6 were used in this PCR (polimerase chain reaction) reaction

First A Master Mix of water, 2x mytaq mix, B7Sym15 Primer Reverse (concentration: 10 micromolar), B7Sym15 Primer Forward (concentration: 10 micromolar)

Component	Volume for 6 reactions(+5% error)
Water	59.85 micoleters
2x mytaq mix	78.75 micoleters
B7Sym15 Primer Reverse (concentration: 10 micromolar)	6.3 micoleters
B7Sym15 Primer Forward (concentration: 10 micromolar)	6.3 micoleters

24 micoleters of this master mix was added to 6 tubes For the 2 controls 12.5 micoleters water and 12.5 micoleters mytaq mix were added

1 microleter of the DNA samples was added to the coresponding tube

The samples were then placed in the thermocycler set to

Step	Temperature	Duration	cycles
1	94°C	2:00	1
2	94°C	0:15	32
3	59°C	0:15	32
4	72°C	0:15	32
5	72°C	5:00	1
6	10°C	hold	-

---

these amplified DNA samples were then tested by making a gel

to create the Gel the following steps were taken

1.5g agarose and 75ml 1X TAE buffer were mixed to make a 2% agarose 75ml gel mix the mix was microwaved and swirled until there were no flakes then 1 microliters Gelgreen was added

the mix was left to cool for 5 minutes then poured into the gel mold the gel was left to harden for 30 minutes

once hardened enough Used TAE buffer was poured into the gel box to cover the mold

5 microliter aliquots of DNA samples E1 E2 E3 E4 E5 E6 and the two controls were made 1 microliter of 5x loading dye was added to each

First the HyperLadder 100bp was added to the first well of the mold then the DNA samples were each added to the wells in the following order

Ladder

E1

E2

E3

Control

E4

E5

E6

Control

The voltage was set to 100V and run for 60 minutes

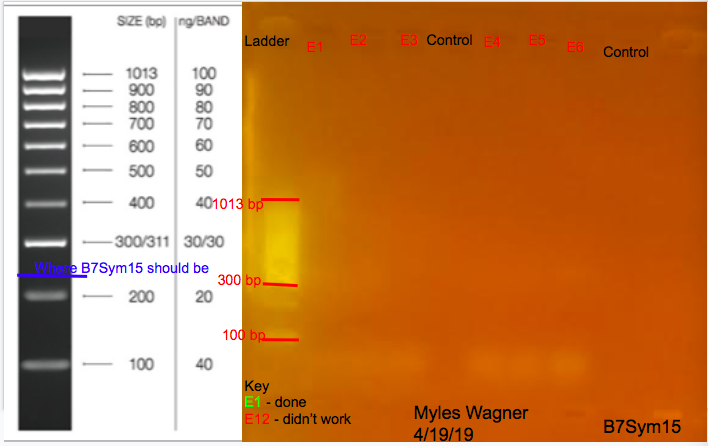

This is the resulting Gel

Notes

There might be the fainest band where the B7Sym15 band should be, Another test will be run with fresh primers to check if that was the problem
